Automatic calibration
Self-learning travel and force settings for faster commissioning on site.
Next-generation performance. Built to last.

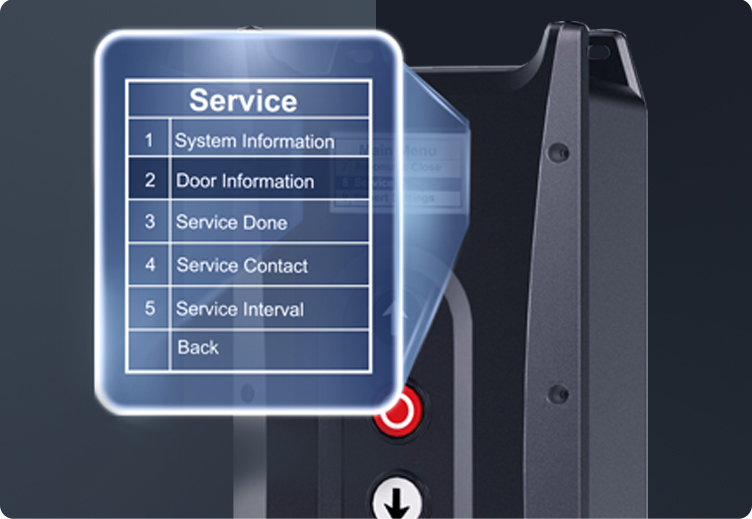

LCD plain-text display
Clear status, fault codes and parameter editing on the controller.

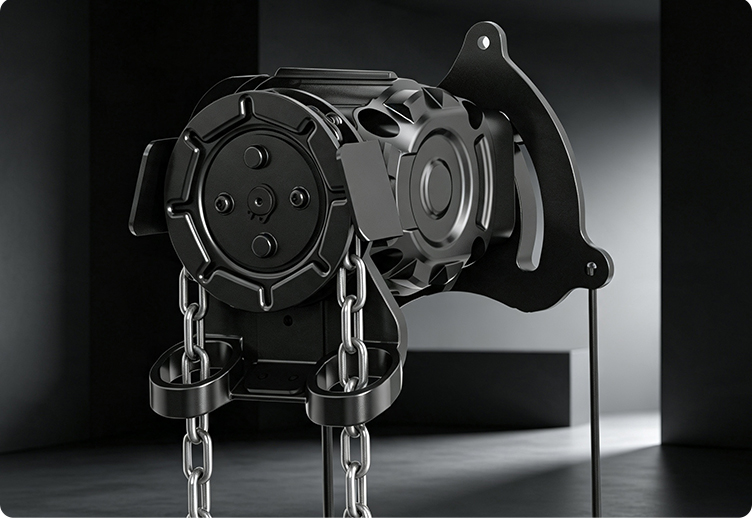

Manual release of the chain
Release the door quickly in an emergency or during power failure.

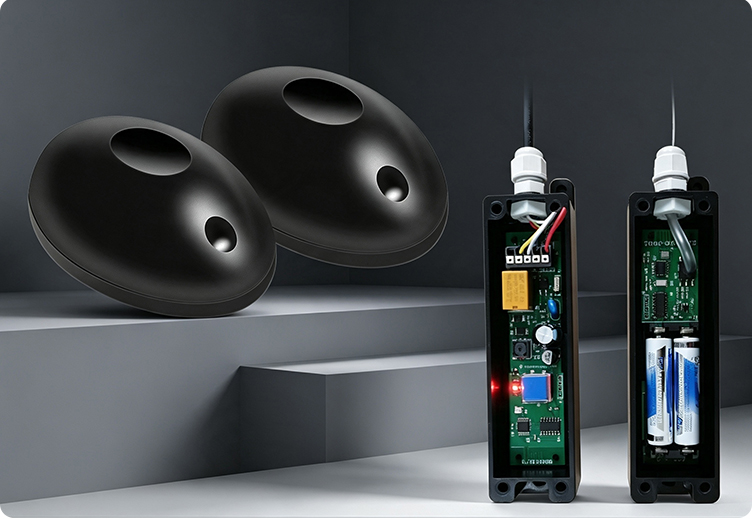

Multiple safety inputs/outputs
Connect photocells, edges and traffic lights through dedicated I/O.

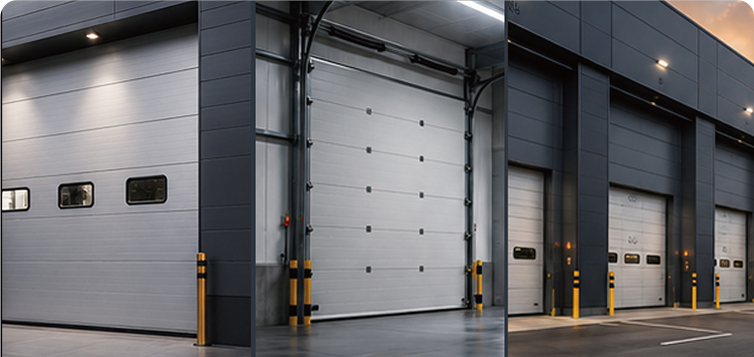

Application cases

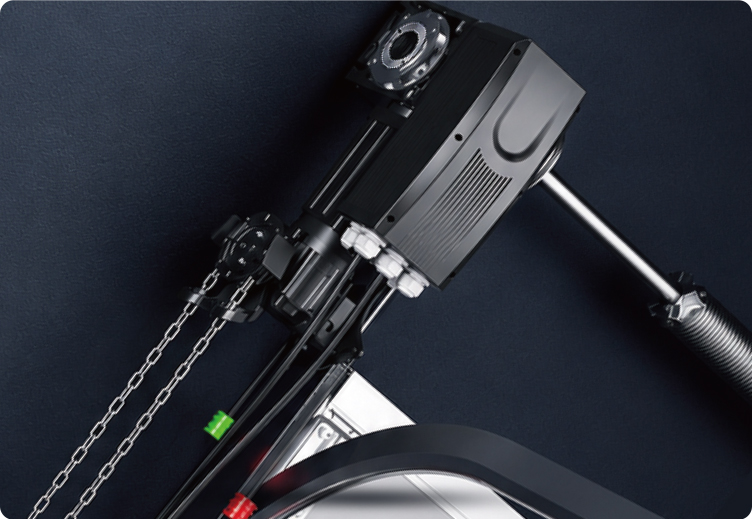

Soft start, soft stop
Smooth start/stop allows an opening/closing without jerks at the ends.
Over-torque protection
In case of over-torque, the system stops to protect the gearbox and sectional door during use.
| Model | SV60-ISO/SV100-ISO/SV150-ISO |
|---|---|
| Voltage | 1-220~240VAC/50/60Hz |
| Power/power in kW | 0.4/0.75/1.0 |
| Rated output torque/Nm | 60/100/120 |
| Max output torque | 80/120/140 |
| Speed in RPM | 1~50 |
| Standard hollow shaft in mm | 25.4/31.75 |
| Resistance class | 60 |
| Waterproof and dust-proof rating | IP54 (IP65 optional) |
| Limit setting of over-travel | Absolute encoder |
| Emergency release | Chain hoist |
| Max. door area in m² | 25/45/55 |
